Cement kiln girth gear factory
2018-05-22 | Editor:

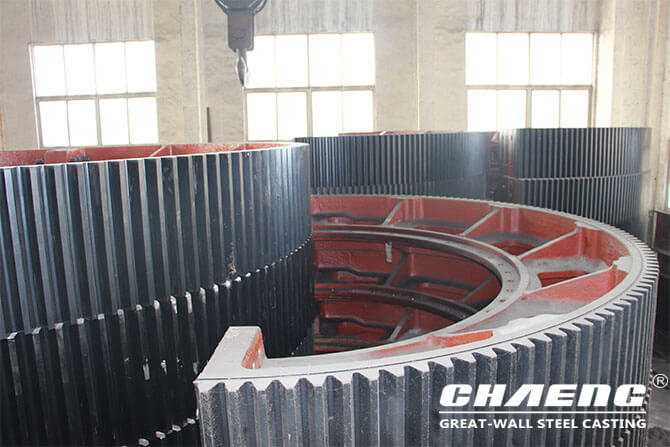

Girth gears are large ring gears which are normally fitted to the outside of ball mills or rotary kilns to provide the primary rotational drive,which is required to be operated in a long time. So, the quality requirements during the actual production for the big gear ring are very high. Girth gears are applied in the mining, cement, minerals industries used in various types of horizontal mills, rotary dryers, rotary kilns and other gear ring applications in heavy processing. With continuous efforts on process optimization on the basis of rich manufacturing experience and advanced equipment, CHAENG is able to offer high quality cement kiln girth gears according to users' drawings and requirements.
| Item | Introduction |
| Material | Carbon alloy, low alloy steel |
| Casting process | Sand casting |
| Test | Ultrasonic Testing (UT), magnetic particle testing (MT), penetrant test (PT) X-ray inspection and so on |
| Machining | rough machining, semi-finished machining, finished machining |
| Certificate | ISO9001:2015 |
| Application | The products can be widely used in the area of ball mill, rotary kiln, industrial rotary dryer etc. |
| Heat treatment | Normalized,Normalized and Tempered, Quench and Tempered. |
Advantages of CHAENG girth gear:
1. Adopt special heat treatment technology to improve the structure optimization, the hardness, and enhance the wear-resistant and anti-impacting performances.
2. Adopts high strength steel materials.
3. Optimize girth gear based on the operation characteristics of the rotary kiln and ball mill, to ensure the stability of the girth gear during the long time operation and extend its service life.
4. Great Wall Steel Casting has large production capability in steel castings, so we can provide girth gear with short cast period and large amount.
4. Great Wall Steel Casting has large production capability in steel castings, so we can provide girth gear with short cast period and large amount.
